DynamiX

Introducing DynamiX

As our name suggests, Novon represents forward momentum and the pursuit of new possibilities.

That spirit defines the DynamiX range, a locally manufactured linear lighting system that brings together innovative design and advanced sustainable manufacturing.

DynamiX is proudly built at our advanced facility in Western Sydney, using precision-extruded aluminium sourced from Capral’s low-carbon LocAl® SuperGreen range.

Every stage from Design and engineering to extrusion and assembly to powder coating, testing, and final QA, is completed here in Australia, ensuring greater control, consistency, and environmental accountability.

45

View feature summary

IP40, IP44*, IP65

Direct

Ceiling Surface

Recessed

Wire Suspension

Rod Suspended

CRI90

3000K / 3500K / 4000K / TW / RGBW

17W, 21W, 30W

Opal, Comfort

Non-Dim, DALI2, Bluetooth*

Sensor, Sensor & Emergency, Emergency, DALI Emergency, DALI Sensor/Emergency

*On request

60

View feature summary

IP40, IP44*, IP65

Direct

Direct/Indirect

Ceiling Surface

Recessed

Wire Suspension¹

Rod Suspended¹

CRI90

3000K / 3500K / 4000K / TW* / RGBW*

Direct –
17W, 21W, 30W
Opal, Comfort, Asymmetric

Indirect –
9W, 12W, 15W
Opal, Batwing

Non-Dim, DALI-2, Bluetooth*

Sensor, Sensor & Emergency, Emergency, DALI Emergency, DALI Sensor/Emergency

*On request
¹Indirect 60 not available in IP65

80

View feature summary

IP40, IP44*, IP65

Direct

Ceiling Surface

Recessed

Wire Suspension

Rod Suspended

CRI90

3000K / 3500K / 4000K / TW* / RGBW*

17W, 21W, 30W

Opal, Comfort

Non-Dim, DALI-2, Bluetooth*

Sensor, Sensor & Emergency, Emergency, DALI Emergency, DALI Sensor/Emergency

*On request

Made in Australia.
Made with purpose.
Made for the future.

Engineered and manufactured in Australia, DynamiX is available in three profiles with multiple output levels, optical distributions, and control integrations including tunable white, RGBW and IP65/IK10 configurations.

Every DynamiX luminaire is built using SuperGreen aluminium, derived from billets with a carbon footprint up to 65% lower than the global average. It’s a future-ready lighting system that balances form, performance, and environmental accountability, making it ideal for architectural, commercial, and industrial applications.

Technical Summary & Data

Luminaire source

LED

Luminaire system wattage

17W/m; 21W/m; 30W/m

Heading

~

Heading

W

Luminaire luminous ﬂux

Heading

~

Heading

lm

Luminaire efficacy (avg.)

90lm/W ~ 115lm/W

Correlated colour temp.

3000K

3500K

4000K

RGBW

Colour rendering index

Ra≥90

Chromaticity tolerance

3 Unified Glare Rating

UGR <19

Beam

Direct

Direct/Indirect

Service lifetime

≥102,000hrs L80/B10

IP rating

IP40

IP44

IP65

Protection class

I

Finish

White

Black

Silver

Custom

Construction

LocAL Super Green Aluminium housing, PC diffuser

Mounting / cutout

Ceiling recessed

Wire suspended

Rod suspended

Ceiling surface

Warranty

7 years

Luminaire termination

Pre-wired flex

Lighting control

Non-dimmable / DALI-2 dimmable

Power factor

≥0.90

Operating voltage

200-240V AC, 50/60Hz

Operating temp.

-20º~40ºC

View your data

Item

IES

Datasheet

45 Surface/suspended

*Refer to data sheet for technical data.

Configure your DynamiX product to download your data

View on desktop to use the DynamiX product configurator

Tailored to Perform.
Designed for Precision.

Novon’s DynamiX linear lighting systems are engineered to meet the specific needs of your project.

With exceptional design flexibility across three profiles, DynamiX offers a wide range of outputs,   optics, control options and mitre angles, all built to order in our Sydney facility.

From education and healthcare to commercial and architectural spaces, DynamiX meets the demands of modern environments with purpose-built versatility.

At Novon, sustainability isn’t a buzzword. 
It’s engineered into every stage of DynamiX.

From responsibly sourced aluminium to diffuser films and energy-efficient production, sustainable thinking is engineered into every stage of DynamiX. 

DynamiX is built from Capral’s LocAl® SuperGreen aluminium, certified to deliver up to 65% lower carbon emissions than the global average. The extrusion process is ASI certified, and our manufacturing incorporates recycled powder coating, closed-loop filtration, and operates in a facility optimised for energy and resource efficiency.

Derived from billets with a carbon footprint up to 65% lower than the global average.  Aluminium with only 4kg of CO2 produced per 1kg of aluminium

Certified by the Aluminium Stewardship Initiative (ASI) ensuring it has been sourced and processed responsibly

99% of paint particles are vacuum-captured and reused up to 200 times, while paint filter waste is recycled and the filters themselves are reused

Enables the recovery and reuse of filtered materials while ensuring zero trade waste. With the use of process water storage tanks, we achieve 100% water capture, filtration,  and reuse.

Our DynamiX luminaires are packaged with Australian-made, high-impact honeycomb cardboard sheets, engineered to withstand substantial weights during transport while remaining durable enough for repeated reuse. The material is also 100% recyclable, ensuring a sustainable end-of-life solution.

Our ISO accreditation reflects a commitment to quality, safety, and continuous improvement, while ASI Certified Performance and Chain of Custody certification affirms our support for responsible aluminium sourcing and sustainability.Testing is carried out with precision and integrity, ensuring reliable performance and trusted results.

From billet to build:
A smarter, lower-impact way to illuminate your space.

This isn’t a stock fitting. It’s a customisable system born from local design, low-carbon sourcing, and Australian manufacturing. DynamiX starts with certified low-impact aluminium and ends with precision-built luminaires to better serve both space and environment.

Adaptive
Simplicity

Designed with a sleek die-cast aluminium housing, these luminaires provide superior heat dissipation and high-lumen output without compromising efficiency. Additional accessories can be integrated for customised performance, making the Serena range an ideal solution for modern, adaptable lighting applications.

/

DynamiX

Technical Summary & Data

Luminaire source

LED

Luminaire system wattage

17W/m; 21W/m; 30W/m

Heading

~

Heading

W

Luminaire luminous ﬂux

Heading

Heading

~

Heading

lm

Luminaire efficacy (avg.)

90lm/W ~ 115lm/W

Correlated colour temp.

Colour rendering index

Chromaticity tolerance

3

Unified Glare Rating

UGR <19

Beam

Service lifetime

≥102,000hrs L80/B10

IP rating

Protection class

I

Finish

Construction

LocAL Super Green Aluminium housing, PC diffuser

Mounting / cutout

Warranty

7 years

Luminaire termination

Pre-wired flex

Lighting control

Non-dimmable / DALI-2 dimmable

Power factor

≥0.90

Operating voltage

200-240V AC, 50/60Hz

Operating temp.

-20º~40ºC

View your data

View your data

Configure your DynamiX product to download your data

View on desktop to use the DynamiX product configurator

Tailored to Perform.Designed for Precision.

At Novon, sustainability isn’t a buzzword. It’s engineered into every stage of DynamiX.

Capral’s LocAl® SuperGreen

ASI Approved aluminium

Novon’s powder coating systems

Closed loop water & chemical management

DynamiX Hexpack Packaging

Compliance

/

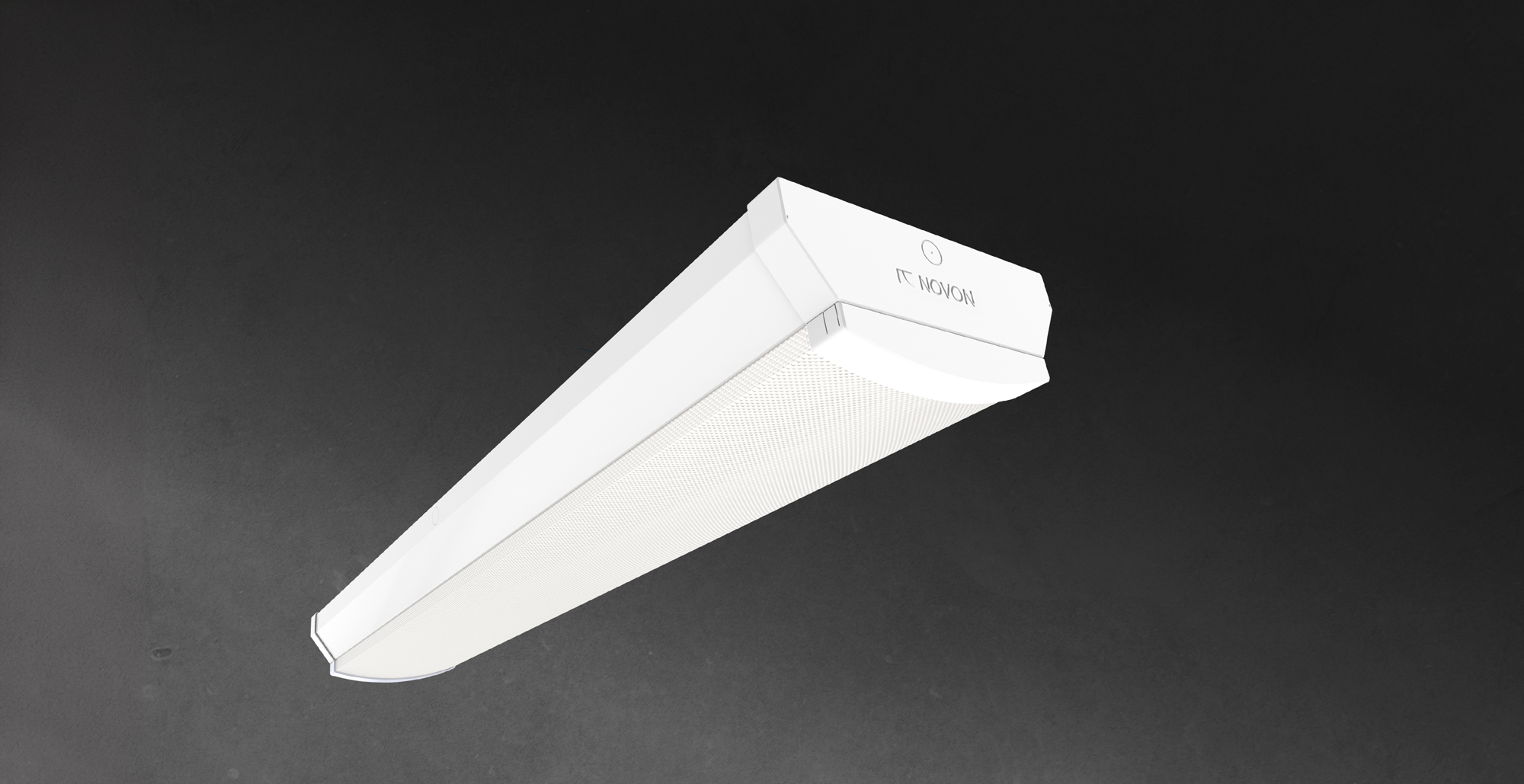

Thorpe Wide
